Circular Stream

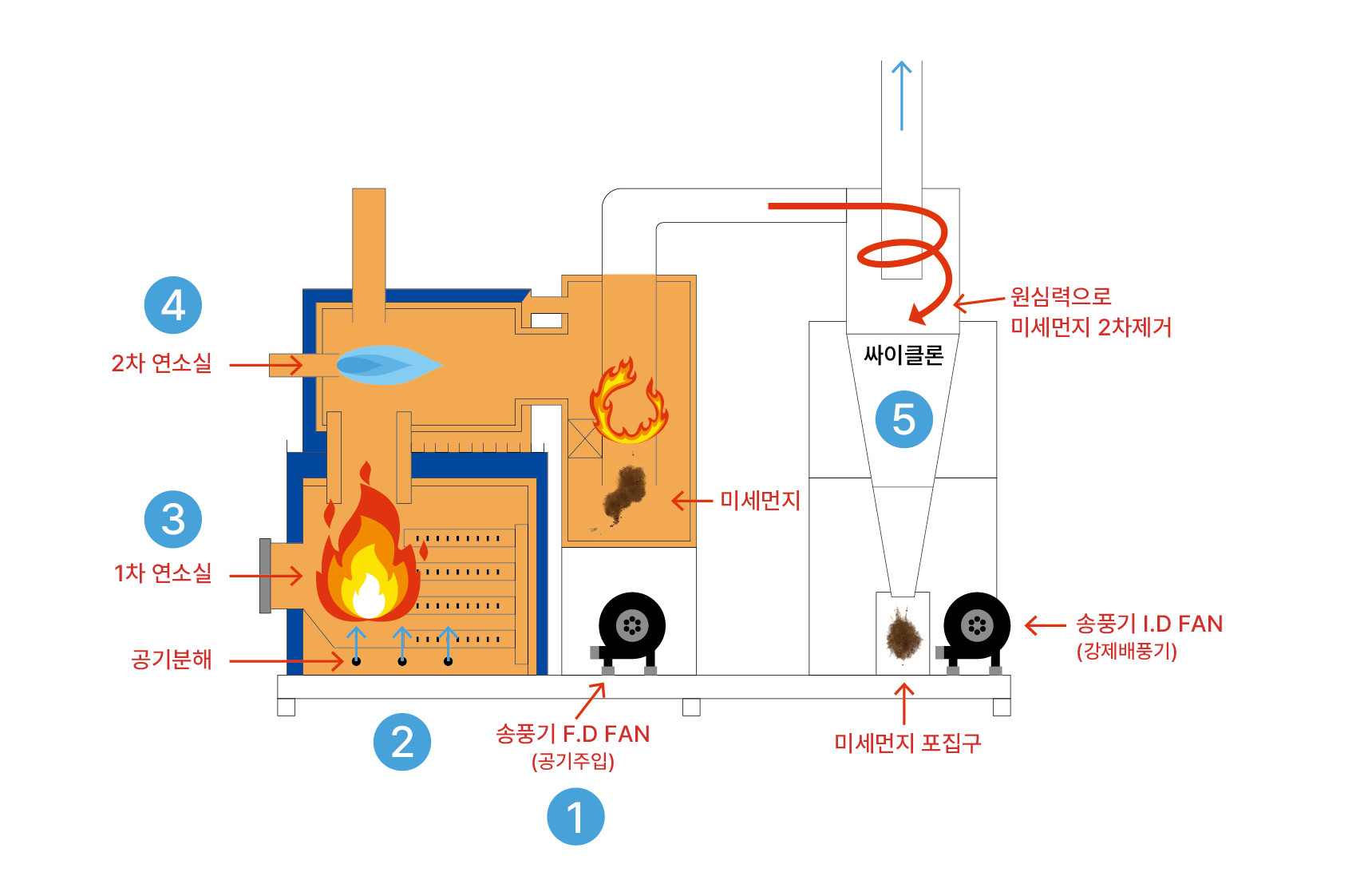

Unburned gas and the 2nd air flow around and are mixed in the 2nd burning chamber, and they collect dust at the same time as burning again.

Side Dropping Type

The phenomenon of reverse fire is

little even if the door is opened while

burning and it is easy to work.

Mixing chamber is established within the furnace and the 2nd air and unburned gas is mixed and burned again, and dust is collected by using gravity.

Type of Top Burning

This is the burning method of not using cast-iron stall by means of air supplies, and it does not need revolving axis chamber or ash accumulated room. The 1st burning chamber is large and the damage and maintenance expenses of cast-iron stall are unnecessary even in continuous burning.

Gas Burning Type

Controlling burning air, it prevents unburned gas from raising, and heats and burns it again with air in the mixing chamber.

Reburning Burner

Heightening the temperature of the 2nd burning chamber, it promote the efficiency of reburning.

Cyclone Type

It is composed in the shape of reverse, and revolves around unburned gas, it collects dust with the centrifugal force, and show the high-degree efficiency of the 2nd burning and dust collection as it makes convection current hours prolong.

Wind Exauster

Heightening the wind exausting ability at the wayside, the burning efficiency is raised and the reburning efficiency is promoted.

Auto Controlled of Temperature

As operation of burner, ventilator,water spray is controlled automatically, burning is done safely, and at the same time the assistant fuel and electric power can be saved.
